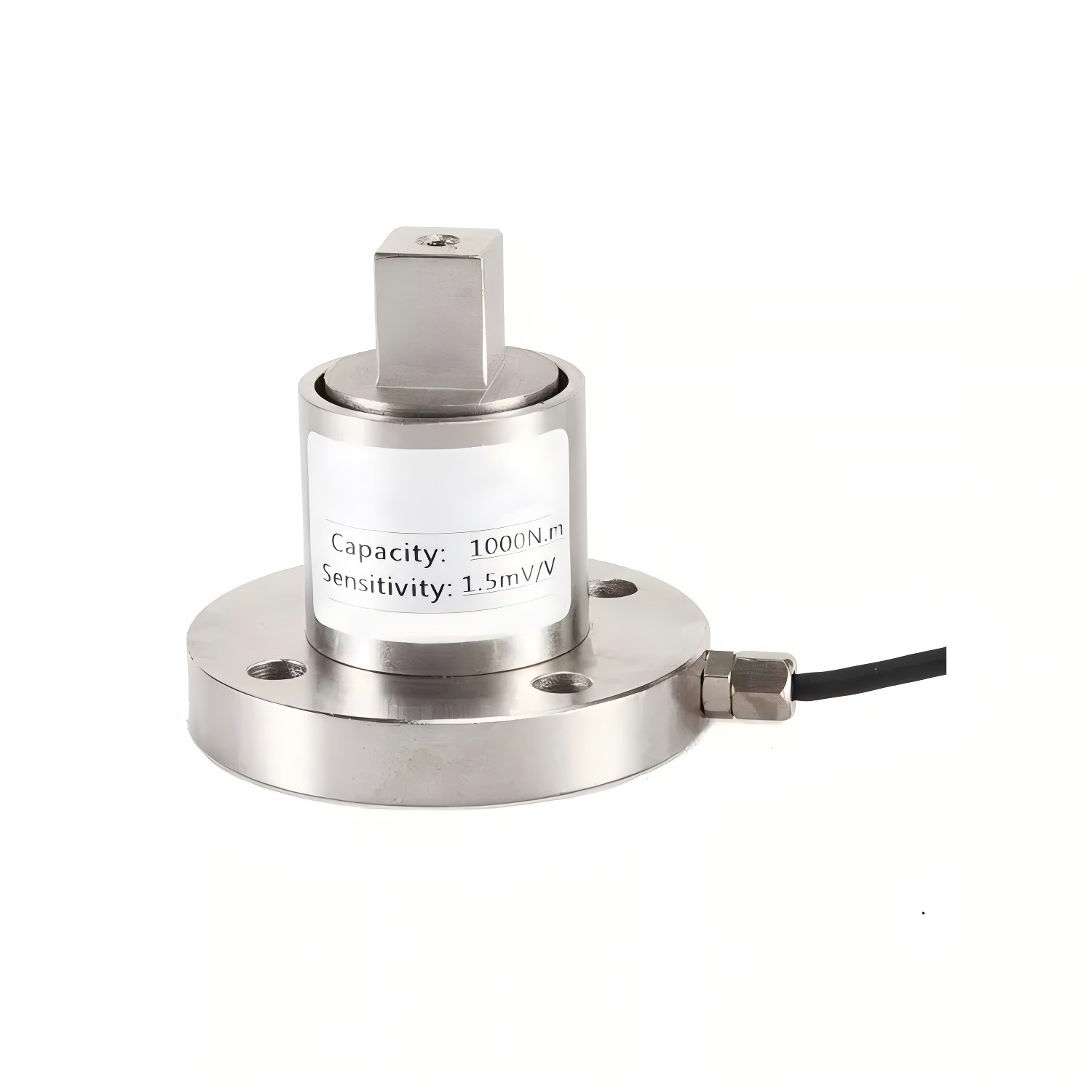

Non-rotating Torque Transducer for Automotive Industrial Use
Model: ZNJ-103
Features:
1. It applies resistance strain gauge integrated with circuitwhich is accurate ,stable, and of large measuring range.
2. Middle capacity static measuring, easy to install.
3. One ends with key (or external square key) joint , anotherend with flanged joint.
Application:
Dimension:mm
Specification:
| Parameters | Specification |
| Capacity | 0~20,50,100,200,300,500,1000Nm |
| Rated Output | 1.5+10% mV/V |
| Zero Balance | ±1%FS |
| Non Linearity | +0.1-0.3%FS |
| Hysteresis | ±0.05%F.S |
| Rapeatability | 0.05%F.S |
| Creep | 0.03%F.S/30min |
| Tamp Effact On Output | 0.03%F.S/10℃ |
| Temp Effect On Zero | 0.03%FS/10℃ |
| lnput impedance | 350/750±10Ω |
| Output impedance | 350/700±50Ω |
| Raspones Fraquency | 100μS |
| Insulation | ≥5000MΩ/100V |
| Recommended Excitation | 10V(DC) |
| Compensated Temp Range | -10 ~ 60℃ |
| Operation Temp Range | -20 ~ 65℃ |
| Safe Overload | 150%F.S |
| Ultimate Overload | 200%F.S |
| Cable Size | φ5.2 x 3 m |
| Cable Color Code | Input Red( +), Black(-)Output Green(+), white(-) |
| Material | Stainless steel/Alloy steel |
