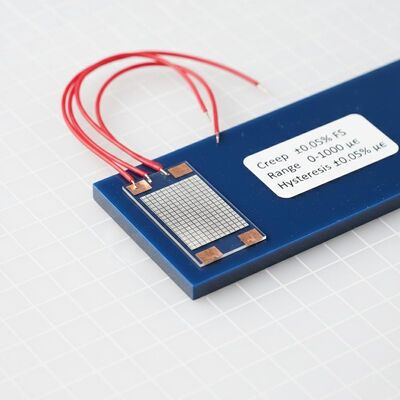

The Foil Strain Gauge is an advanced sensing device designed to accurately measure strain in various applications, particularly in load cell sensor and tension measuring systems. Known for its precision and reliability, this product is crafted from high-quality metal foil material, ensuring durability and excellent performance under different environmental conditions. Its micro pressure sensor feature allows it to detect even the slightest changes in strain, making it an indispensable tool in industries where precise measurement is critical.
One of the standout characteristics of this Foil Strain Gauge is its exceptional creep performance, rated at ±0.05% Full Scale. Creep refers to the gradual change in the strain gauge’s output over time when subjected to a constant load or strain. This minimal creep value signifies that the gauge maintains its accuracy and stability over prolonged periods, which is essential for applications that demand continuous monitoring and long-term reliability. This attribute also reduces the need for frequent recalibration, saving time and operational costs.
This product is widely used in load cell sensor and tension measuring applications, where it plays a crucial role in converting mechanical strain into an electrical signal that can be measured and analyzed. In load cells, the strain gauge detects deformation caused by applied force, enabling precise weight and force measurement. Similarly, in tension measuring systems, it helps monitor the stress and strain on materials such as cables, wires, and structural components. The high sensitivity of the metal foil material enhances the gauge's ability to provide accurate readings even under micro pressure conditions.
The Foil Strain Gauge is available in customized service options, allowing clients to tailor the product to their specific requirements. Whether it’s adjusting the size, shape, resistance, or configuration, customization ensures optimal integration into various measurement systems. This flexibility makes it suitable for a wide range of industries, including aerospace, automotive, civil engineering, and industrial manufacturing, where precise strain measurement is crucial.
Among the different configurations available, the strain gauge can be designed as half bridge strain gauges or linear strain gauges, depending on the application needs. Half bridge strain gauges consist of two active gauges, which help in compensating for temperature fluctuations and improving measurement accuracy. Linear strain gauges, on the other hand, are designed to measure strain along a single axis, making them ideal for applications where directional strain data is required. Both types leverage the inherent advantages of the metal foil construction to deliver consistent and reliable performance.
The micro pressure sensor feature integrated into the Foil Strain Gauge enhances its capability to detect minute strain variations, which is particularly beneficial in sensitive measurement applications. This feature allows engineers and technicians to monitor structural integrity, stress distribution, and load changes with high precision, thereby improving safety and performance in critical systems.
In summary, the Foil Strain Gauge is a high-performance strain measurement solution that combines the robustness of metal foil material with cutting-edge micro pressure sensing technology. Its excellent creep resistance of ±0.05% Full Scale ensures long-term stability and accuracy, making it ideal for load cell sensor and tension measuring applications. With customizable options and availability in half bridge and linear strain gauge formats, it offers versatile and reliable strain measurement for a wide array of industrial and scientific uses. Whether for structural health monitoring, force measurement, or material testing, this product stands out as a dependable choice for professionals seeking precision and durability in strain gauges.
| Model | HA Series |
| Measurement Range | 0-1000 Microstrain |
| Working Temperature | －20～＋80℃ |
| Operational Temperature | －20～＋80℃ |
| Service | Customized |
| Feature | Micro Pressure Sensor |
| Material | Metal Foil |
| Carrier Material | Phenolic Aldehyde / Polyimide / Epoxy |
| Usage | Load Cell Sensor And Tension Measuring |
| Creep | ±0.05% Full Scale |
This product belongs to the category of Linear Strain Gauges, specifically designed as Foil Strain Gauges. These Linear Strain Gauges provide precise measurement capabilities suitable for various industrial applications.
The Top Sensor BF-350 series Foil Strain Gauge is a highly reliable and precise measurement solution designed for various industrial and research applications. Manufactured in China with stringent quality control, this product is ideal for those seeking accurate strain measurement in demanding environments. With a measurement range of 0-1000 microstrain and an operational temperature range from -20 to +80℃, the BF-350 series is well-suited for both standard and harsh conditions.
These strain gauges come in both Full Bridge Strain Gauge and Half Bridge Strain Gauges configurations, enabling versatile usage depending on the specific requirements of the application. The HA Series model is specially designed for load cell sensor and tension measuring applications, making it an excellent choice for structural health monitoring, mechanical testing, and material fatigue analysis. The metal foil material used ensures durability and sensitivity, which is crucial for precise strain detection and long-term stability.
The BF-350 series Foil Strain Gauges are widely used in various scenarios such as aerospace engineering, automotive testing, civil engineering structures, and manufacturing process control. Engineers and technicians rely on these strain gauges to monitor stress and strain on critical components like beams, bridges, aircraft wings, and mechanical parts. The full bridge and half bridge configurations provide flexibility in measurement techniques, allowing users to optimize signal quality and compensate for temperature variations.
With a minimum order quantity of 50 pieces and a supply ability of 10,000 pieces each week, Top Sensor ensures that clients receive their orders promptly. The delivery time is approximately 3 weeks, with payment terms requiring T.T 100% in advance, guaranteeing a smooth and secure transaction process. This makes the BF-350 series an ideal choice for both small-scale research projects and large-scale industrial production.
In summary, the Top Sensor BF-350 series Foil Strain Gauge offers dependable performance for load cell sensors and tension measuring applications across a wide range of industries. Its robust metal foil construction, extensive operational temperature range, and versatile bridge configurations make it a trusted component for precise strain measurement. Whether you need full bridge strain gauges or half bridge strain gauges, the BF-350 series delivers excellent accuracy and durability to meet your engineering and testing needs.
